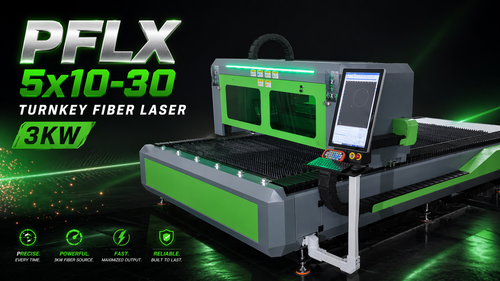

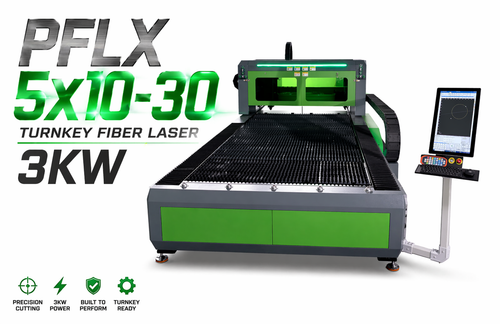

PFLX 5x10-30 Turnkey Fiber Laser
More power, faster cutting, and higher capacity—built for shops that don't want limitations.
When material gets thicker or production demand increases, power matters.
This system gives you that headroom—without complicating your power setup.
Runs on Standard Shop Power
This system includes an integrated inverter, allowing it to run on 220V single phase—no external 3-phase required.
Specs Snapshot
Cutting Area
59.5" × 118.5"
Power
3kW
Input Power
220V Single Phase (inverter included)
Accuracy
±0.0004 in
Repeatability
±0.0004 in
Rapid Speed
3,140 IPM
Material Capacity — Production Cutting
Material
Max Thickness
Mild Steel
up to 0.70"
Stainless Steel
up to 0.47"
Aluminum
up to 0.30"
Brass
up to 0.23"
Copper
up to 0.118"
What's Included
Everything you need to run:
- Full machine system
- Chiller
- Voltage converter (included)
- Computer + software
- Starter consumables
- Training resources
Facility Requirements
- 220V single phase power
- Level concrete floor
- Indoor environment
- Minimum 2 ft clearance
